* Coolant Temperature Sensor(냉각수 온도 센서) - LPGi System 적용 - 냉각수 온도센서 - NTC Type themistor Engine coolant temperature temperature（℃） Resistance between pin a and c（KΩ） 10 4 25 2.2 30 1.82 50 0.9 75 0.42 85 0.32 95 0.24

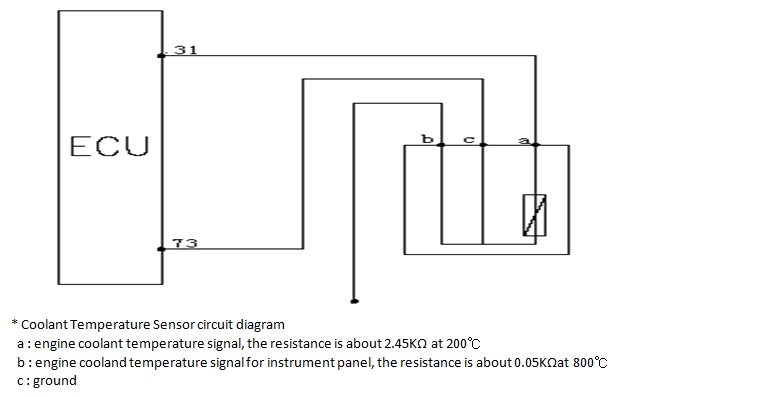

* Coolant Temperature Sensor(냉각수 온도 센서)
- LPGi System 적용 - 냉각수 온도센서 - NTC Type themistor
Engine coolant temperature
temperature（℃）
Resistance between pin a and c（KΩ）
10
4
25
2.2
30
1.82
50
0.9
75
0.42
85
0.32
95
0.24
